Use a Blackboard LTI-link in your assignment

Angela Konijn
  • Updated

If you would like to set up the Blackboard integration for an assignment, you will need a LTI-link. This LTI link is generated from Blackboard. Linking your assignment will allow your students to open the assignment through your LMS. Once the assignment has finished, you are also able to synchronise the results from within Ans.

Create a link for an assignment with LTI 1.2
error_outline LTI 1.2 will be deprecated on the 27th of August 2023. If you currently have any LTI 1.2 integrations configured on university level, you can continue to use these until then. New LTI 1.2 integrations can no longer be configured on university level. We advise institutions to replace their LTI 1.2 integration to version 1.3 as soon as possible as IMS Global stopped supporting version 1.2 on June 30, 2022. You can find more information on how to setup LTI 1.3 here.

To create a LTI-link for an assignment, follow the steps below.

  1. Set up the Blackboard integration on school level in Ans.
  2. Sign in to Blackboard.
  3. Click Courses in the menu at the top.
  4. Click on your course or use the search bar.
  5. Click Course content in the menu on the left.
  6. Click the drop-down button Build content and select Ans digital exam.
  7. Fill in a name and the number of points.
  8. Click Submit.
  9. Click on the LTI-link bar in the overview and you will be redirected to Ans.
  10. Select the assignment and click Create.
  11. The LTI-link is created.
  12. If students click on the link in Blackboard, they will be redirected to the assignment in Ans. There is also a possibility to export the grades to your Blackboard automatically.
Create a link for an assignment with LTI 1.3

To create a LTI-link for an assignment, follow the steps below.

  1. Set up the Blackboard integration on school level in Ans.
  2. Sign in to Blackboard.
  3. Click Courses in the menu at the top and select your course.
  4. Click Content in the menu on the left.
  5. Click the dropdown menu Build content at the top and select your LTI label.
    This label was created in step 11 under 'Finalise the setup in Blackboard'. In this case the label is Ans.


  1. Fill in the name of your assignment.
  2. Select Enable Evaluation under Grading. If this option is disabled, the students will not have access to the test.


  1. Click Submit.
  2. Click the link you just created.
  3. Select the course and then the assignment you want to link.

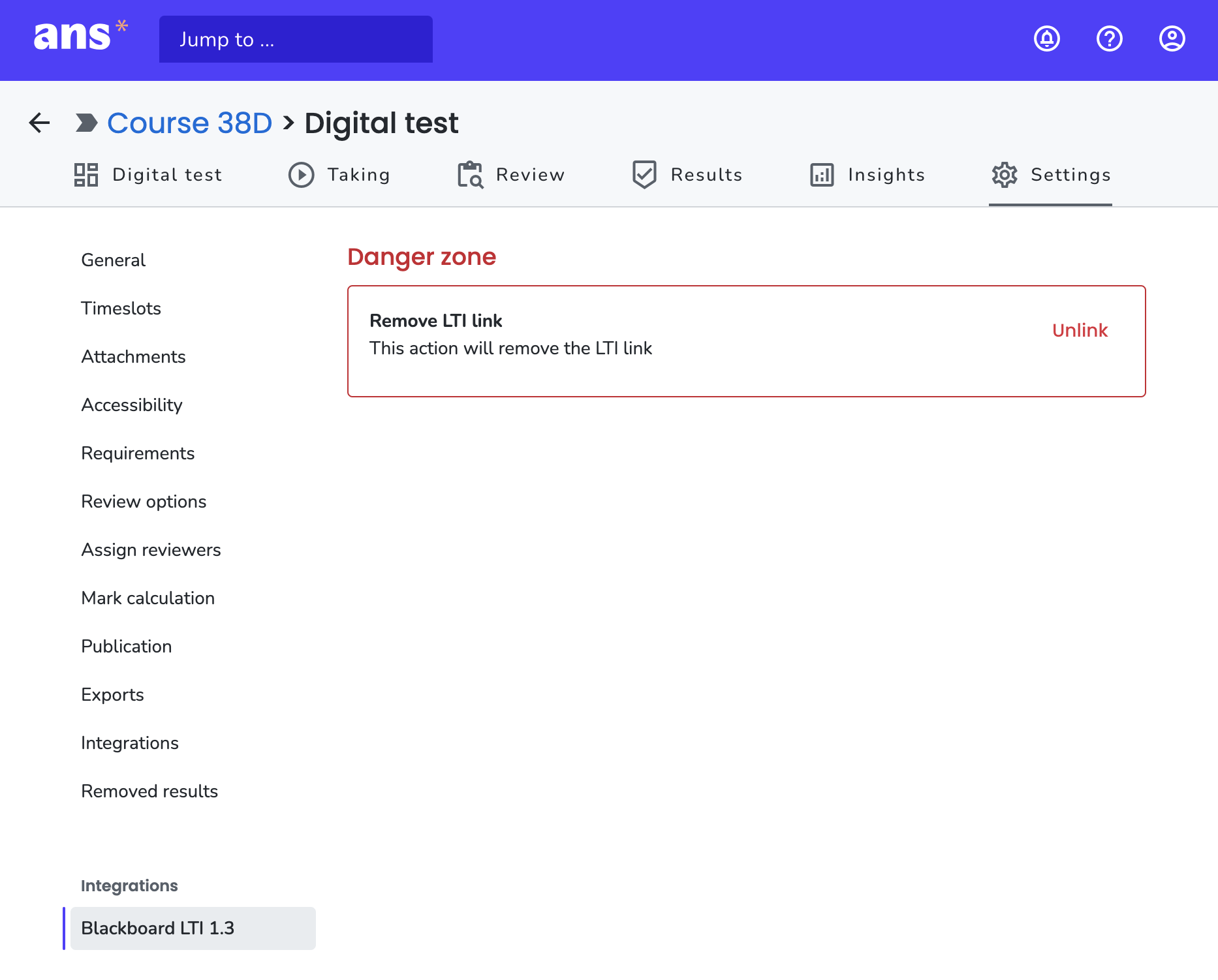

Check or uninstall your LTI-link

If you need to check and/or uninstall the LTI-link, you can do so by following the steps below.

  1. Click your domain School name in the menu on the left.
  2. Click label_important Courses in the menu at the top.
  3. Select your course or use the search bar.
  4. Select your assignment or use the search bar.
  5. Click the settings Settings tab.
  6. Scroll down to your integrations (not the tab named Integrations) in the left menu.
  7. Click on your Blackboard LTI-link. You are now able to remove the LTI-link by uninstalling it.

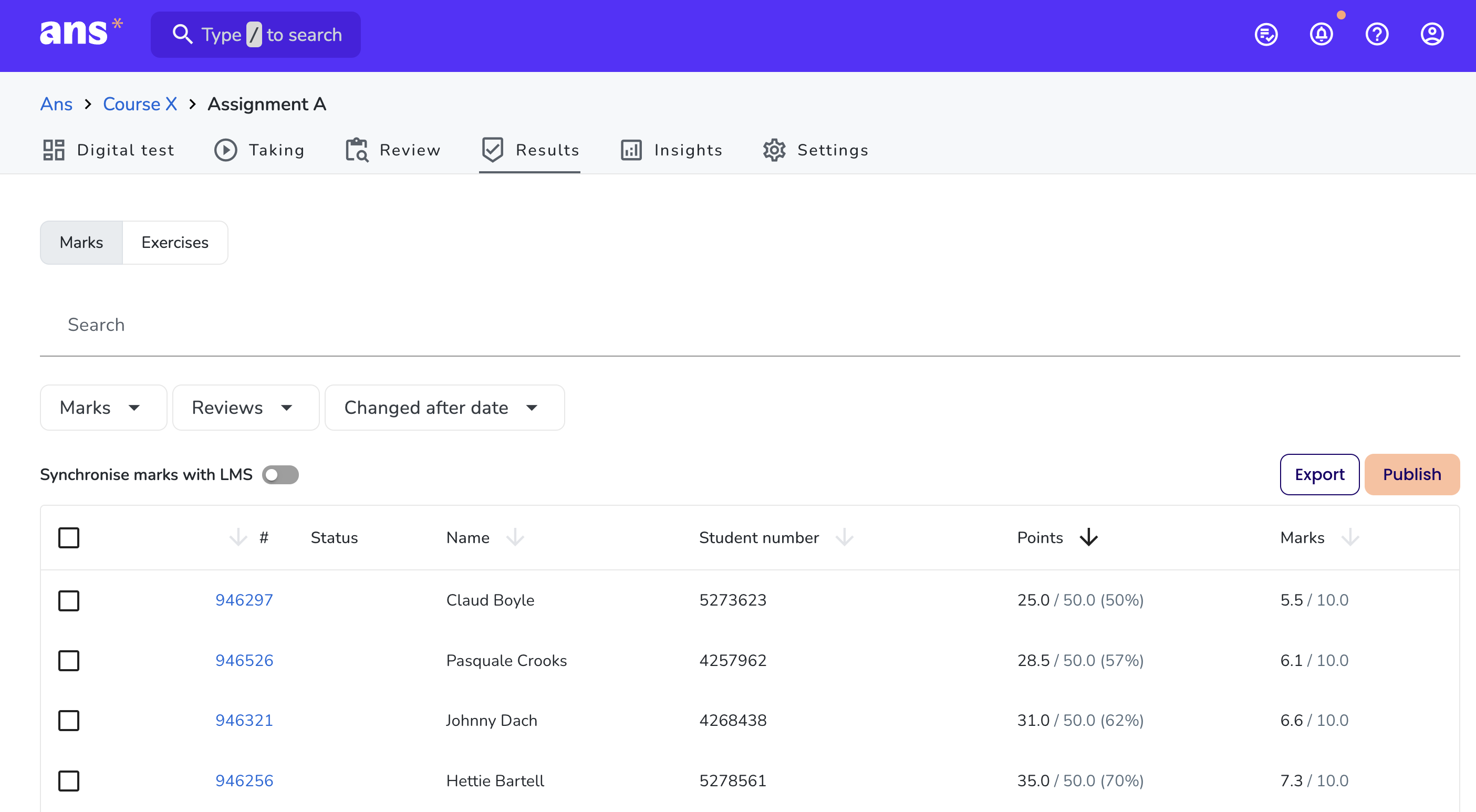

Synchronise the results

Once you have set up the integration for an assignment and received an LTI-link, you can synchronise the results.

To synchronise the results, follow the steps below.

  1. Click your domain School name in the menu on the left.
  2. Click label_important Courses in the menu at the top.
  3. Select your course or use the search bar.
  4. Select your assignment or use the search bar.
  5. Click policy Results in the menu at the top.
  6. Click Send marks to LMS.
