Use a Canvas LTI-link in your assignment

Angela Konijn
  • Updated

If you want to set up the integration for an assignment, you will need an LTI-link. This LTI link is generated from Canvas. Linking your assignment will allow your students to open the assignment through your LMS. Once the assignment has finished, you are also able to send the marks from within Ans.

error_outline You cannot set up an LTI coupling after taking the exam. The participants need to log in through the LMS to finalise the coupling. That way, Ans knows which result in Ans belongs to which student in the LMS.

Create a LTI-link for an assignment with LTI 1.3

To create a LTI-link for an assignment, follow the steps below.

  1. Set up the Canvas integration on school level in Ans.
  2. Sign in to Canvas.
  3. Click Courses in the menu on the left.
  4. Click on your course or use the search bar.

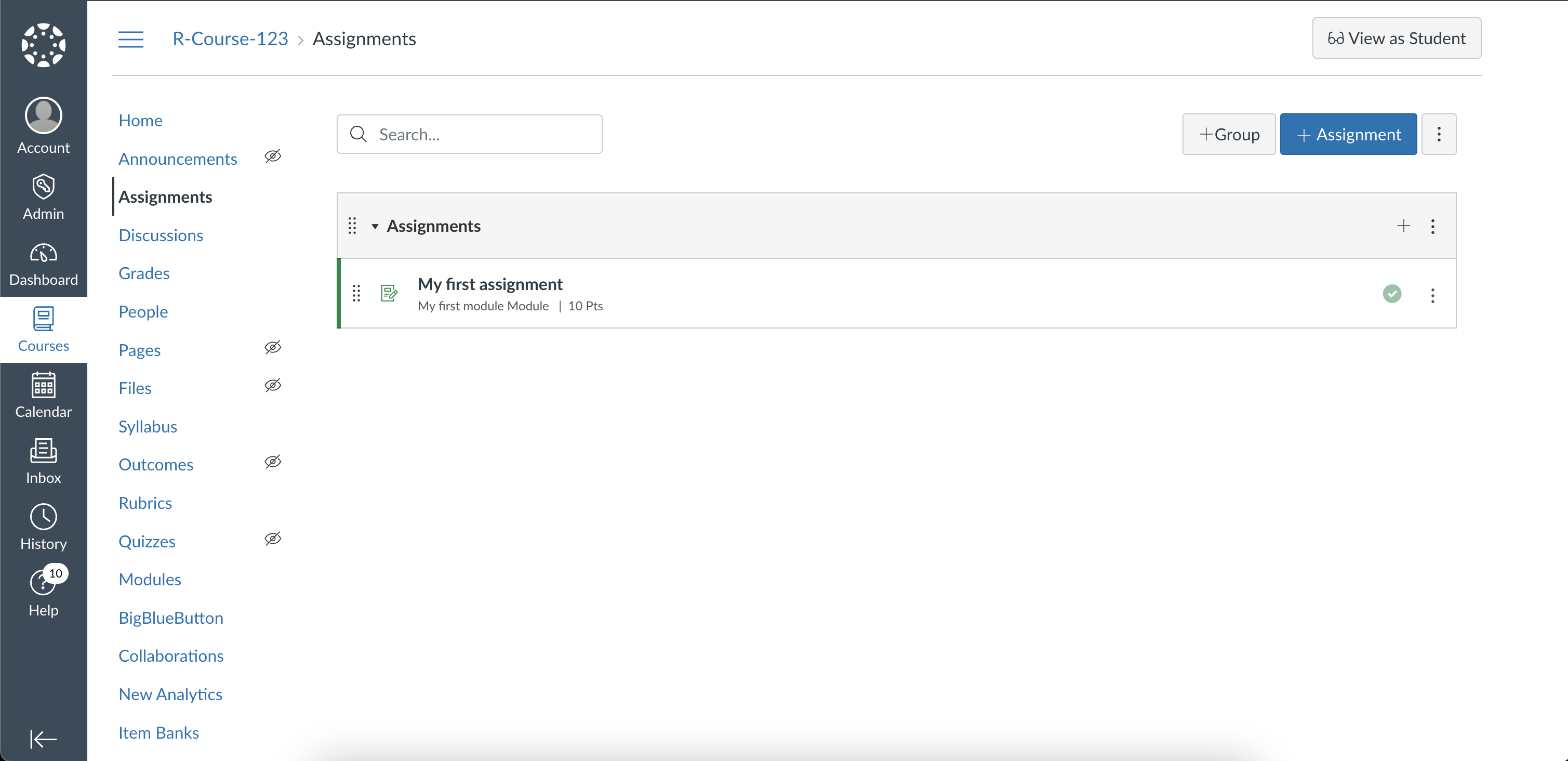

  5. Click Assignments in the menu on the left.
  6. Click + Assignment.

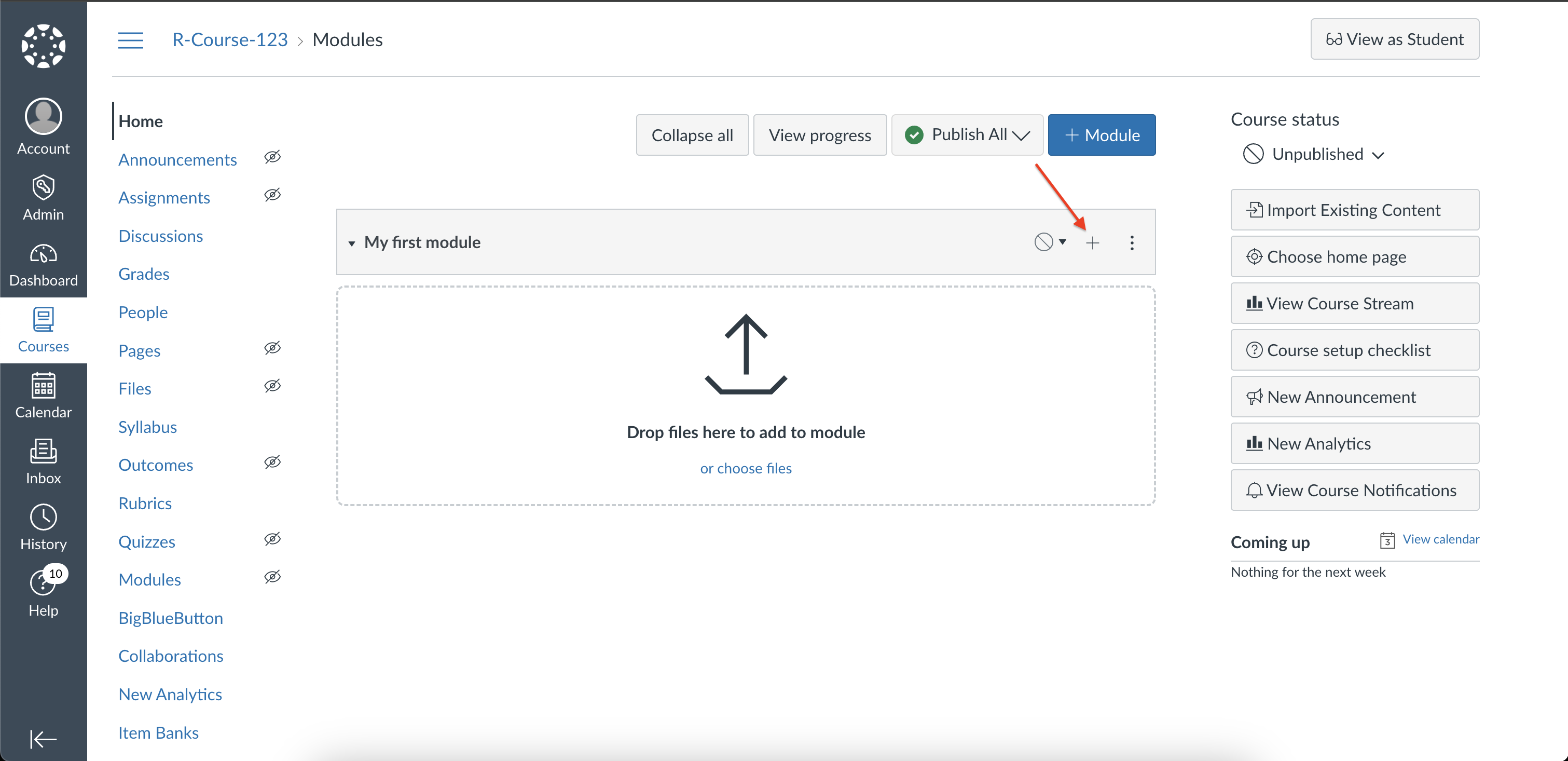

You can add the tool in a module or as an assignment. Grades are only synchronised if it has been added as an assignment. That is why we add it here as an assignment.


     7. Fill in your preferred title name.

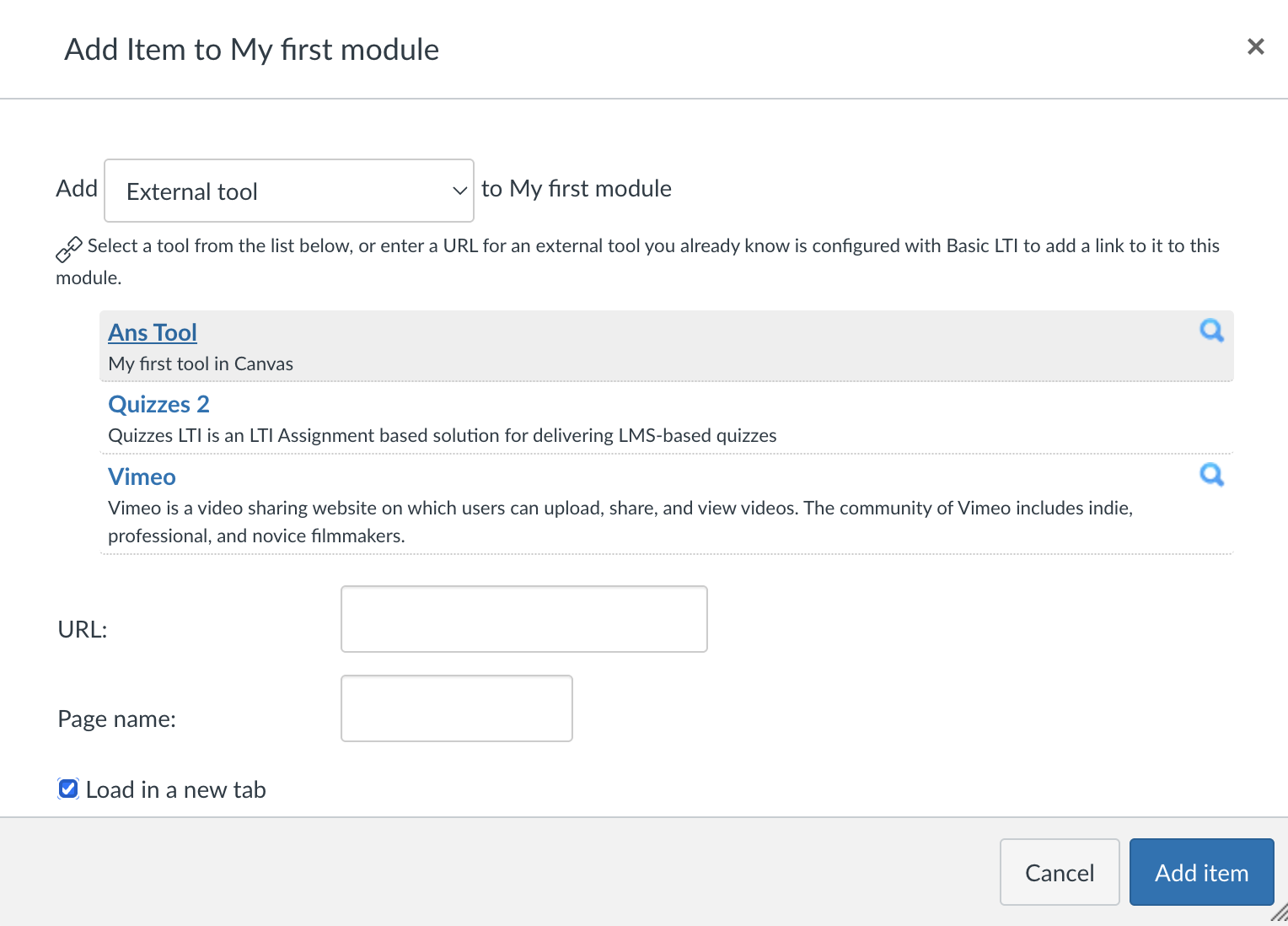

     8. Click the dropdown menu Submission type and choose External tool.
     9. Select Ans and make sure to check 'Load This Tool In A New Tab'. Click Save.

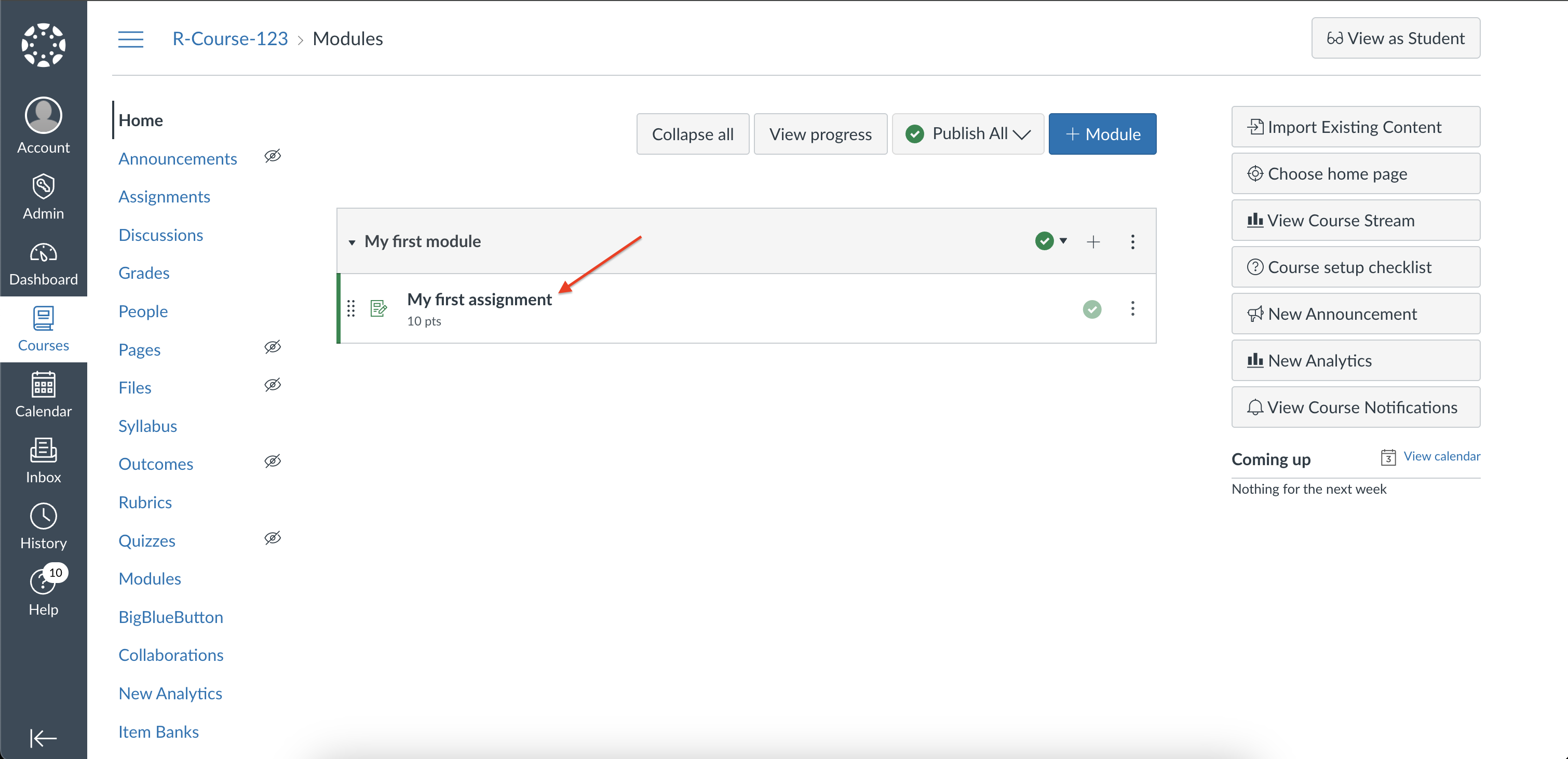

     10. Click on the assignment you just created and you will be redirected to Ans.
     11.  Select the Course you want to create the LTI-link for and then click on the Assignment.



The LTI-link will be created. You will automatically be redirected to the assignment you just linked. If students click on the link in Canvas, they will be redirected to the assignment in Ans. There is a possibility to export the grades to your Canvas automatically.

Check or unlink your LTI-link

If you need to check and/or unlink the LTI-link, you can do so by following these steps below.

  1. Click your domain School name in the menu on the left.
  2. Click label_important Courses in the menu at the top.
  3. Select your course or use the search bar.
  4. Select your assignment or use the search bar.
  5. Click the Settings tab.
  6. Scroll down to your integrations (not the tab named Integrations) in the left menu.
  7. Click on your Canvas LTI-link. You are now able to remove the LTI-link by unlinking it.

LTI Canvas.png

Send the marks

Once you have set up the integration for an assignment and received an LTI-link, you can send the marks.

To send the marks, follow the steps below.

  1. Click your domain School name in the menu on the left.
  2. Click label_important Courses in the menu at the top.
  3. Select your course or use the search bar.
  4. Select your assignment or use the search bar.
  5. Click Results in the menu at the top.
  6. Click Send marks to LMS.
